65-inch Interactive Compatible Touch Screen Enterprise Meeting Display Remote Electronic Interactive Board

55" / 65" / 70" / 75" / 86" / 86" / 98" / 110"

1920x1080(Or 3840x2160)

H/V:178/178°

≤350cd/㎡±20

60HZ

10Bit,16.7M

Stereo hybrid dual-channel CLASS-D power amplifier output, rated power :2x10W
(L+R / 8Ω) of THD+N≤10%@1KHz (Audio Input:0.5VRMS)

Infrared sensor recognition touch technology (20 points)

Touch resolution

Android system

USB input: 5 (Type-A USB2.0x3, USB3.0x2), OUCH input: 2 (Type-A For USB Touch) [including 1 front], network input: 1 standard RJ45
cable Ethernet port, audio output: 1 Earphone, video output: 1 channel AV OUT,1 channel SPDIF OUT, central control: 1 channel
RS232 Uart, video input: 1 channel wireless 2.4G Wi-Fi, 3 channels HDMI(including 1 channel front),1 group AV IN (Mini 3 in 1),
YP-C input: 1 channel [including 1 channel front],
3 HDMI(including 1 front),1 AV IN (Mini 3 in 1)

[Including front USB2.0x2, USB3.0x1]

1. The product is equipped with Android 11.0 embedded operating system, industry-customized human-computer interaction UI system,
full-featured touch interactive operation, providing friendly human-computer interaction experience!
2. The product supports VB1 interface to achieve UHD input and output display with 3840*2160P resolution.
3. With commonly used AV, headphones and other commonly used ports, while providing HDMI, USB2.0, USB3.0 and other multimedia
input and output ports;
4. Support Intel OPS standard notebook platform OPS PC, desktop OPS-C PC, through HDMI, USB and other data connection to achieve
audio, video and data file communication
5. Support infrared touch screen, capacitive touch screen USB, I2C, serial port and other communication ports, to achieve seamless
interaction between Android and Windows systems;
6. Support a variety of sensors, environmental light dynamic monitoring, full channel intelligent recognition and other functions;

3C/CE/FCC/ROSH/ Energy Saving certificate

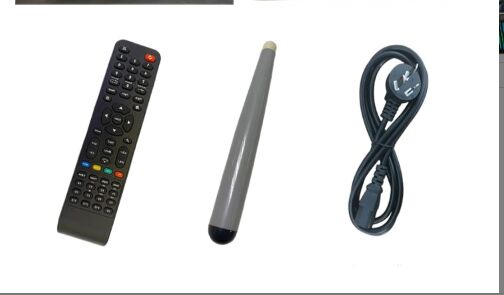

LCD *1 Remote control *1 stylus *1, manual *1 power cord *1 wall mount *1
